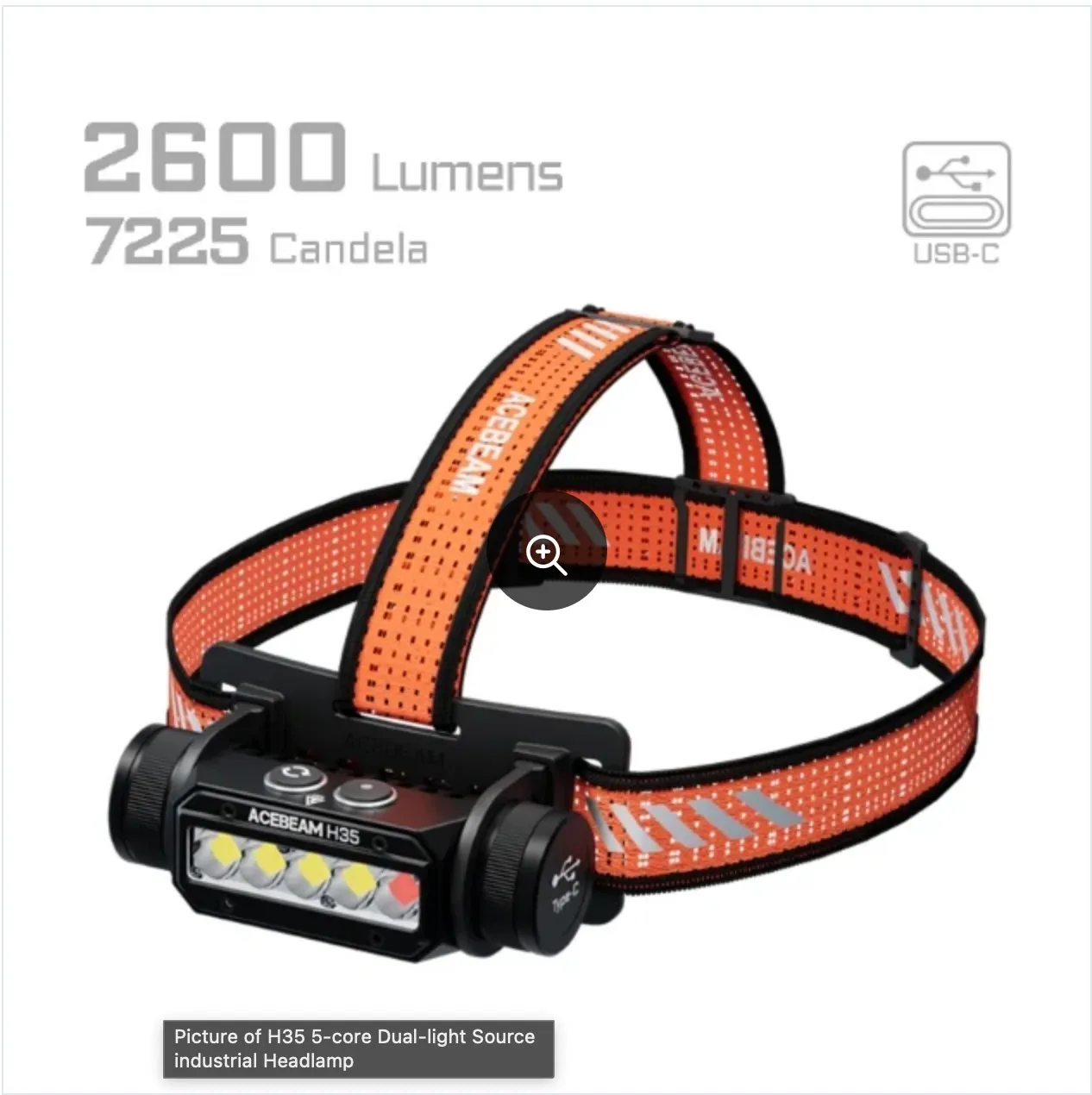

Name: ACEBEAM H35 5-core Dual-light Source industrial Headlamp
SKU: 38523

The ACEBEAM H35 is a high-performance headlamp designed for industrial and high-intensity tasks. Featuring dual light sources (red and white), it delivers a powerful 200 lumens red light with SOS functionality and a maximum white light output of 2600 lumens for wide-area illumination. With a runtime of up to 216 hours in ultra-low mode, it meets the demands of extended use. Powered by a single 18650 lithium-ion battery, the H35 features ACEBEAM’s patented bracket with 70° adjustable angles, allowing for flexible transitions between long-range and close-up lighting. With an IP68 waterproof rating and rugged durability, it is the ideal choice for industrial operations, search and rescue missions, and equipment inspections in demanding environments.

LED Option*

4*LUXEON HL4X 6500K 1*RED

DETAILS

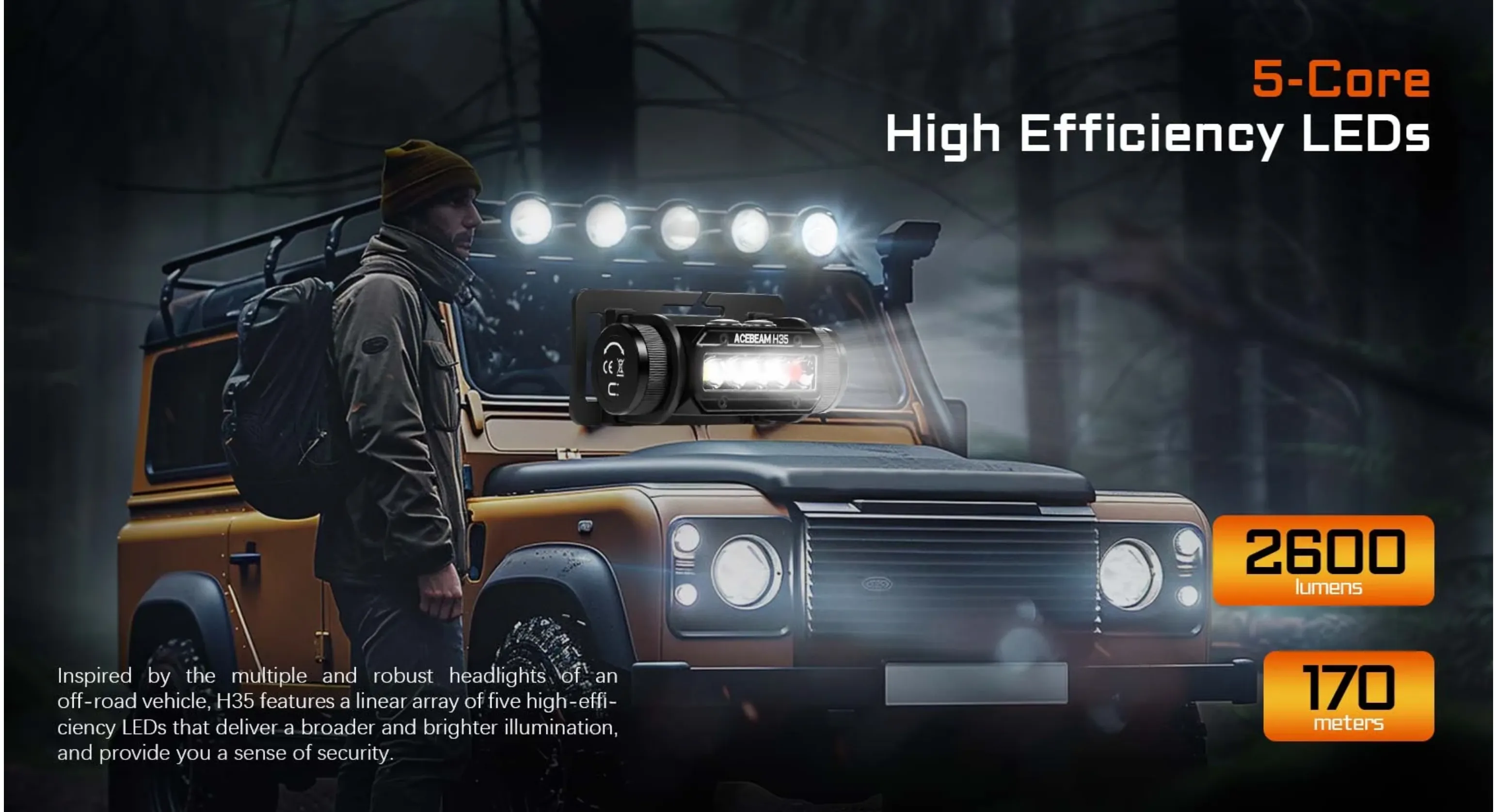

A linear array of 5 high-efficiency LEDs that deliver a broader and brighter illumination
Max 2600 lumens with an extreme beam distance of 170 meters / 185 yards

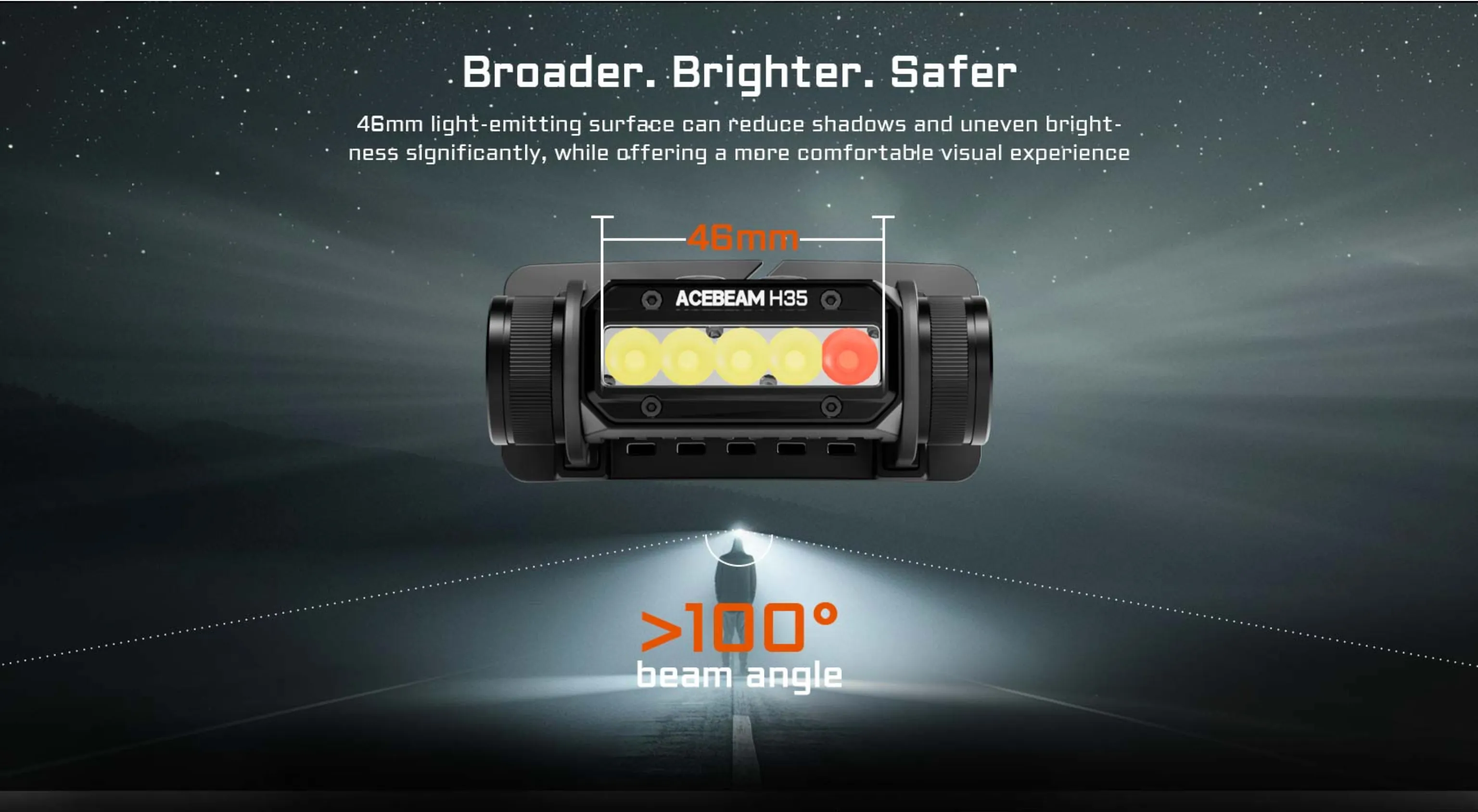

46mm light-emitting surface reduces shadows and uneven brightness significantly
>100° beam angle ensures that you can see things around you clearly
Intelligent temperature control, stable output
White and red dual light sources, built for any adventure
- White light has 5-level brightness, offering clear illumination with simple Mode Switching.
- Red light delivers max 200 lumens and throws up to 63 meters, ideal for hunting and preserving night vision
Convenient USB-C charging port, 5V 2A charging, about 3.5 hours to get fully charged

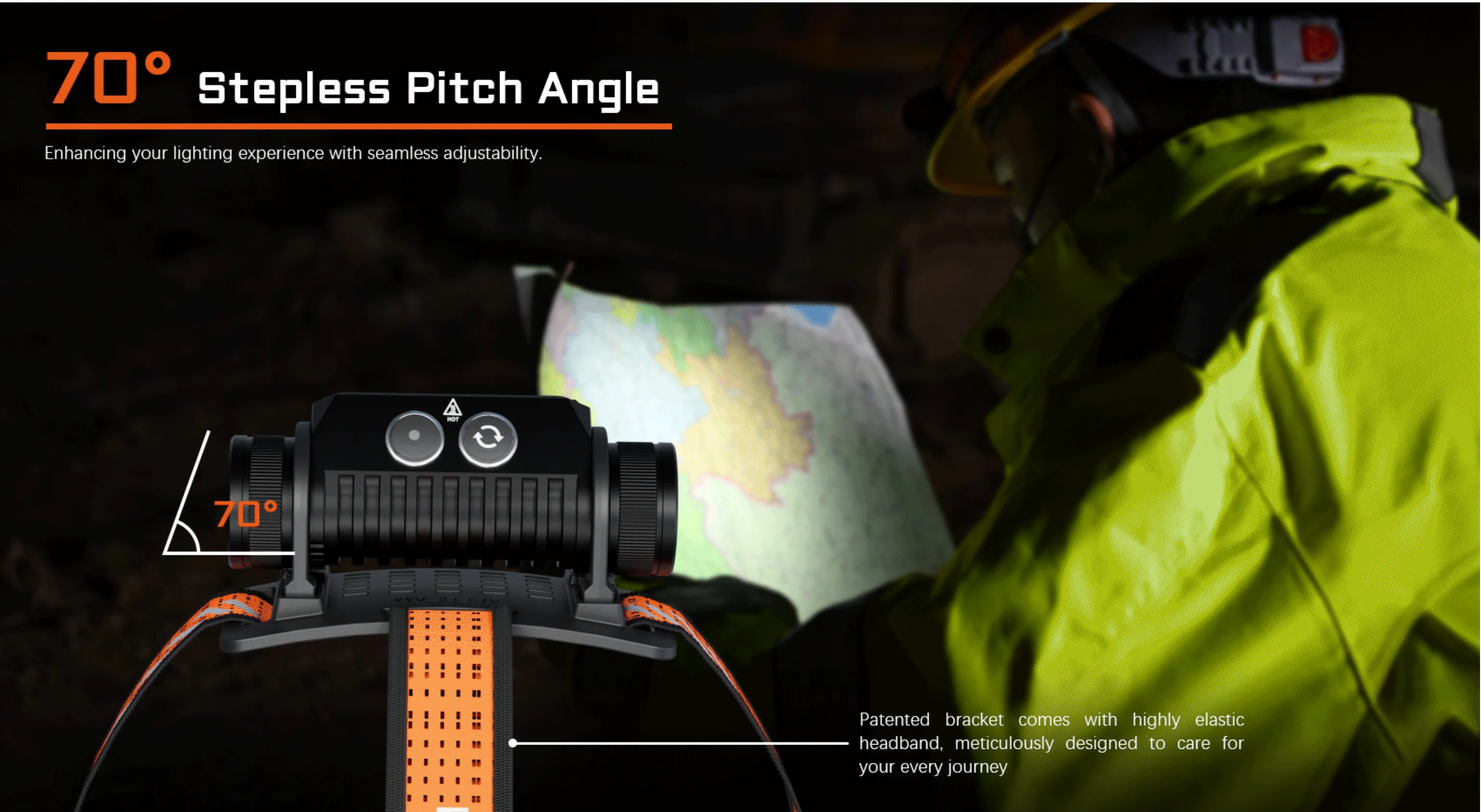

Patented bracket, 70° Stepless pitch angle enhances your lighting experience with seamless adjustability
Highly elastic headband, meticulously designed to care for your every journey

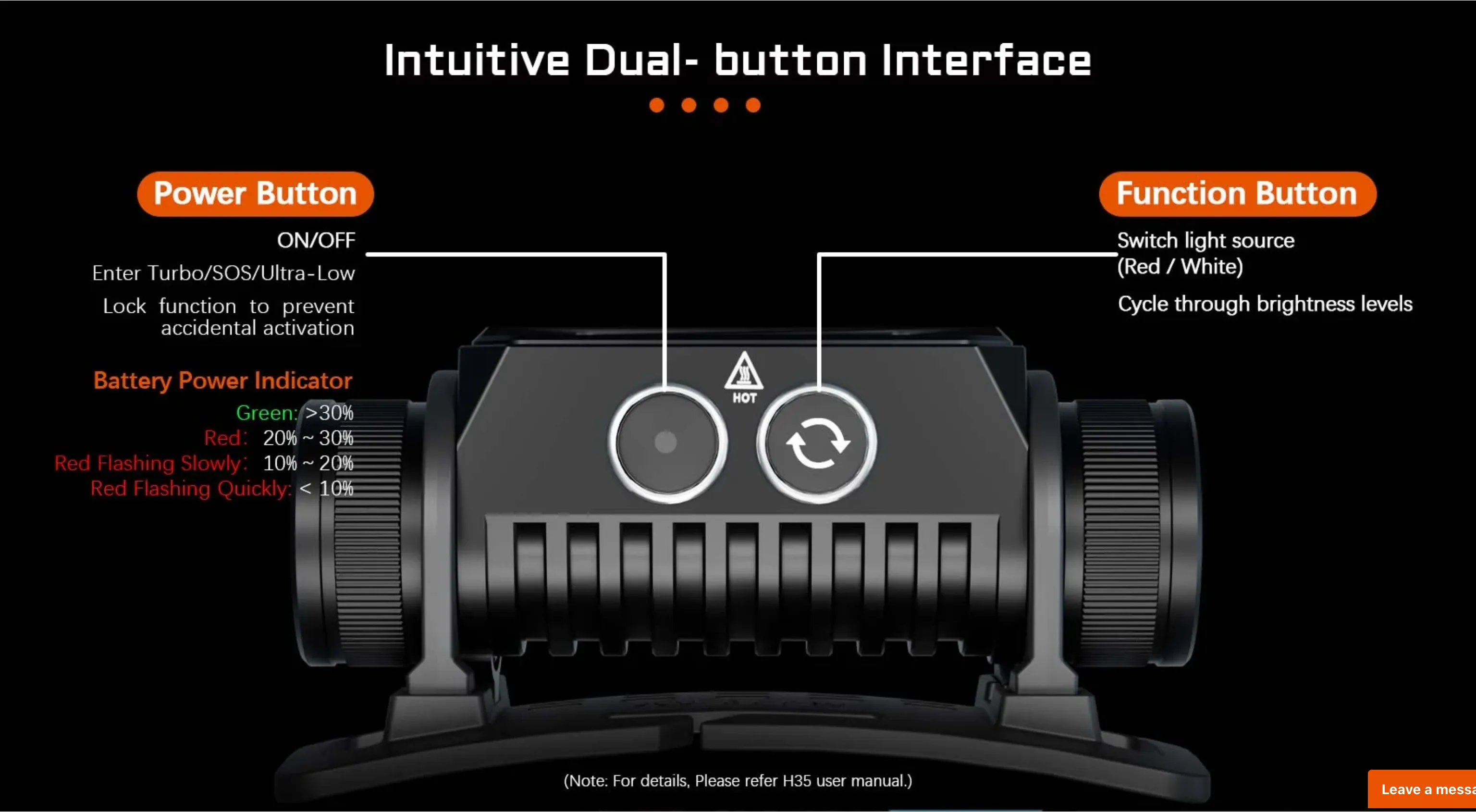

Intuitive Dual- button Interface offers quick and convenient operation
Lock function with Power button to prevent accidental activation

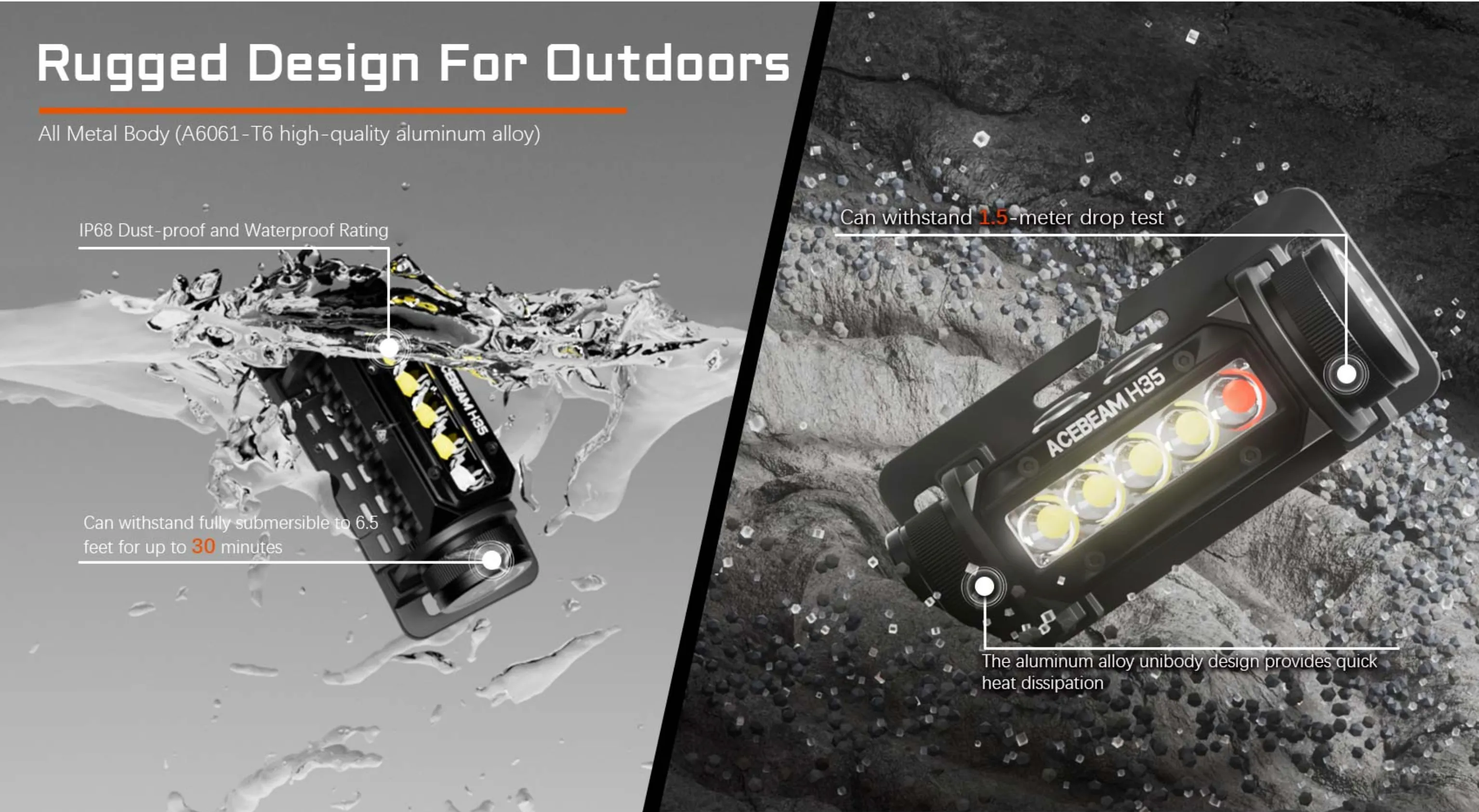

All metal (AL6061-T6 high-quality aluminum alloy) unibody design provides quick heat dissipation and can withstand 1.5-meter drop test
IP68 Dust-proof and Waterproof Rating: Fully submersible to 2 meters / 6.5 feet
Ideal for hunting, camping, fishing, climbing, hiking, emergency lighting, exploration and caving

BATTERIES

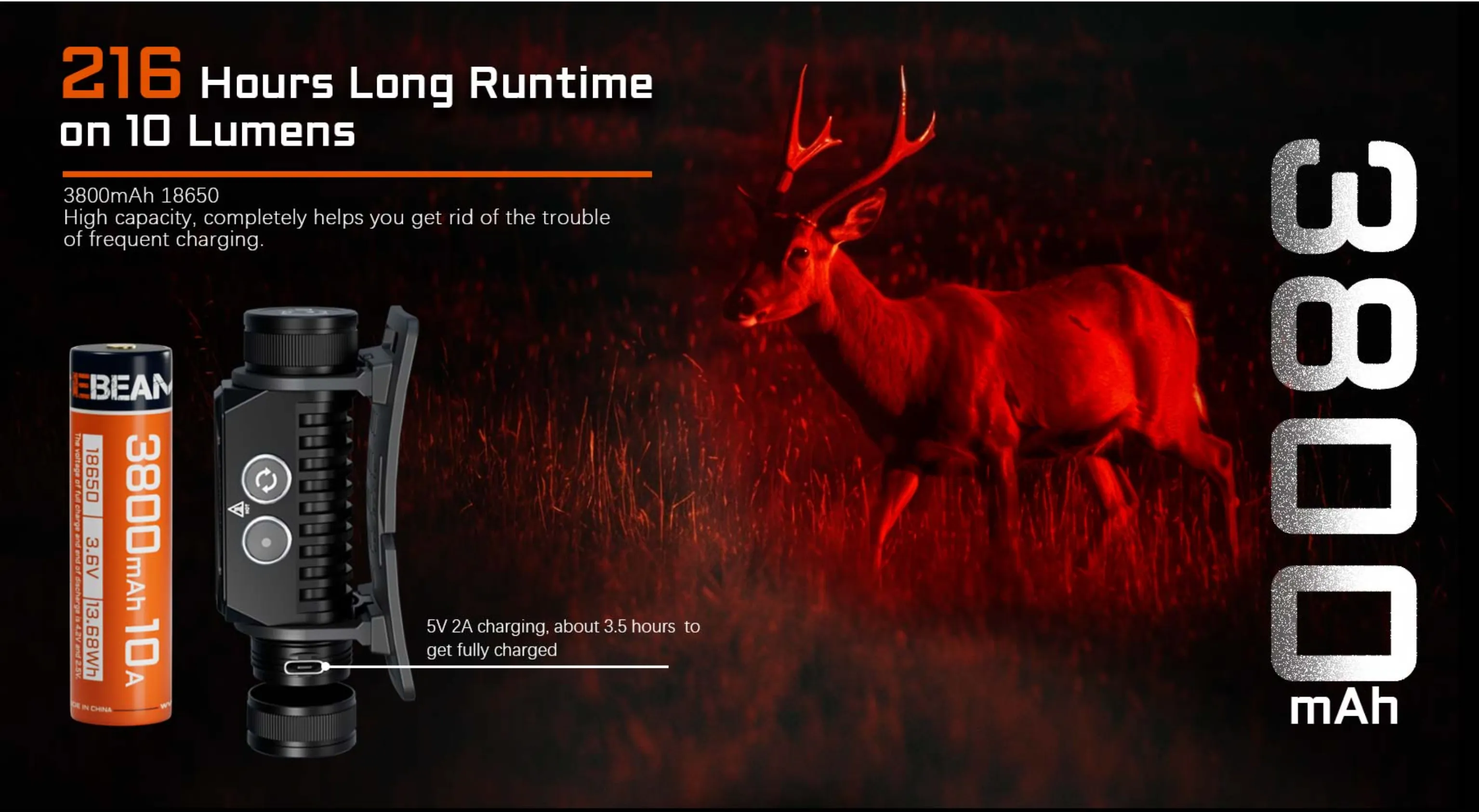

Including: 1 x 3800mAh 18650 lithium-ion battery

SIZE

Length: 87mm/3.42"
Width: 40mm/1.57"
Height: 44.3mm/1.74"
Weight: 163g/ 5.7oz (Including battery, bracket and headband)

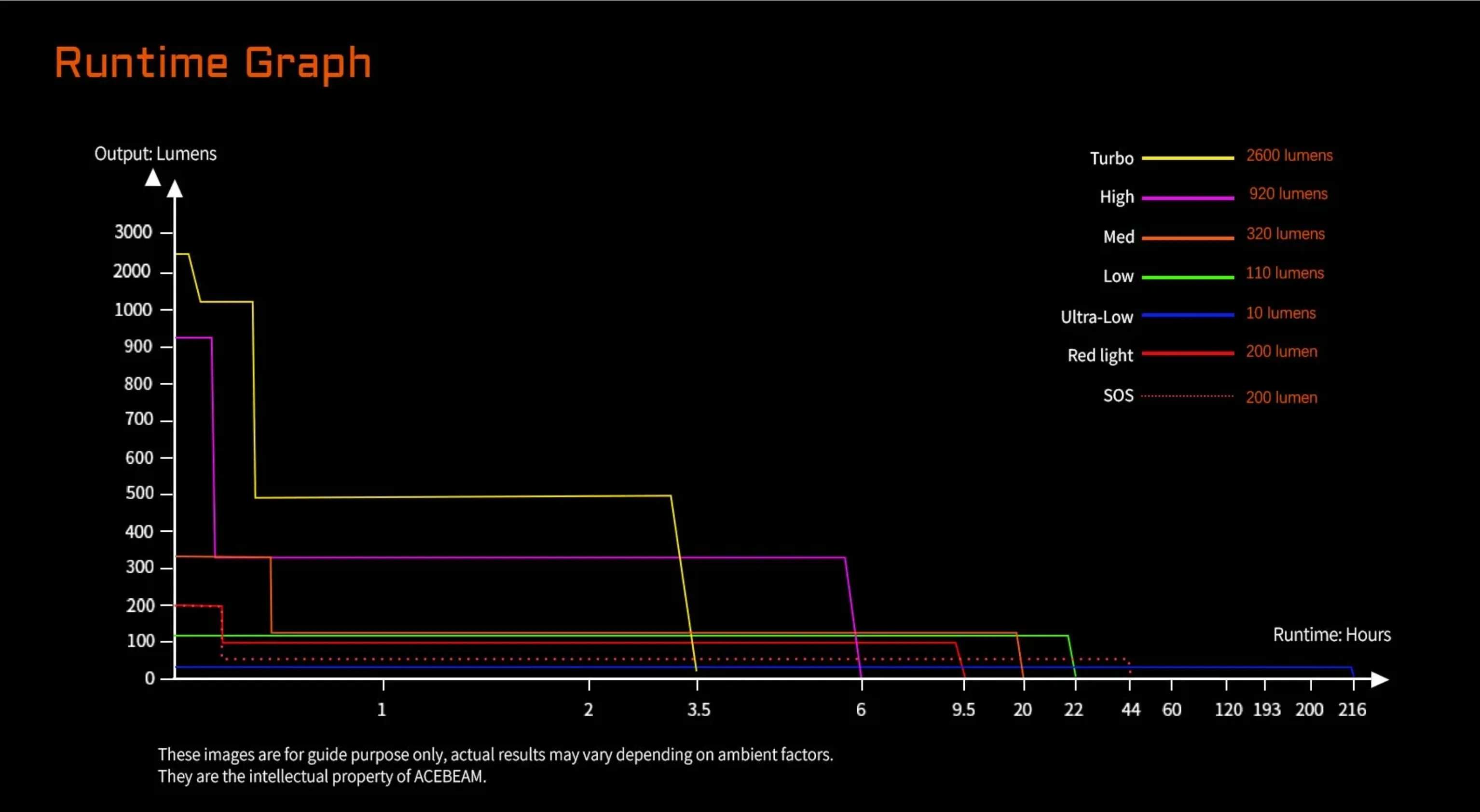

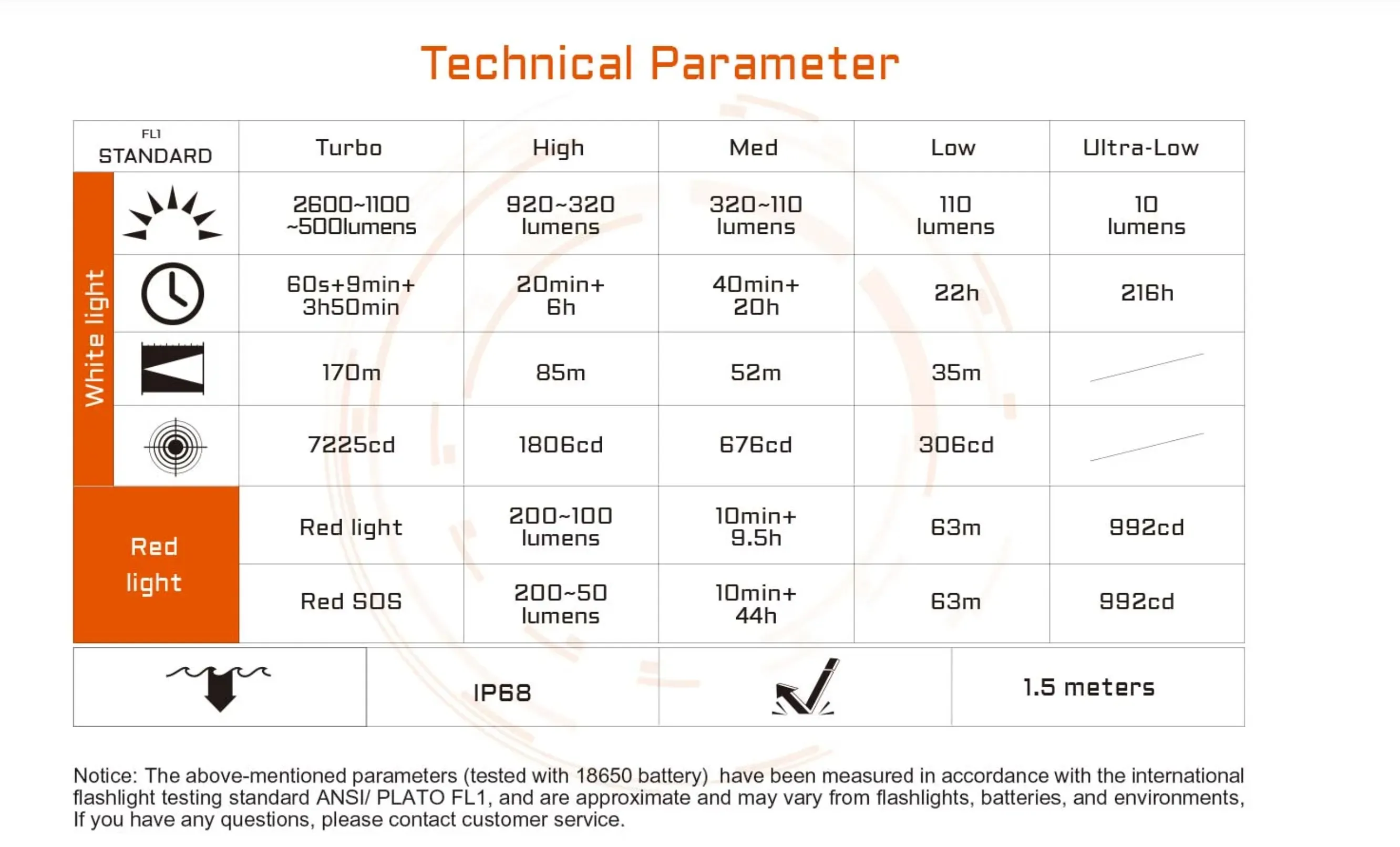

OUTPUTS

• 4 x White light LEDs

Ultra Low: 10 lumens; 216 hours
Low: 110 lumens; 22H
Med: 320 ~ 110 lumens; 40min ~ 20H
High: 920 ~ 320 lumens; 20min ~ 6H
Turbo: 2600 ~ 1100 ~ 500 lumens; 7225cd; 170 meters; 60 seconds ~ 9min ~ 3H50min

Max. output: 2600 lumens
Max. beam distance: 170 meters/185 yards
Max. runtime: 216 hours on 10lm
Peak beam intensity: 7225cd

• 1 x Red CREE LED

Lighting level: 200 ~ 100 lumens; 992.25cd; 63 meters; 10min ~ 9.5H
SOS: 200 ~ 50 lumens; 992.25cd; 63 meters; 10min ~ 44H

Max. output: 200 lumens
Max. beam distance: 63 meters/ 68 yards
Max. runtime: 44 hours on 50lm (SOS)
Peak beam intensity: 992.25cd
