YAMAHA/GIVI pannier frames are designed to mount aluminium cases and do not have a standard flat profile on the exhaust side. This special edition OS-PLATFORM includes a stainless steel adaptor to flatten the profile and provide a strong mounting location for the OS-PLATFORM, which then gives you the option to mount Kriega ‘Soft Luggage’.

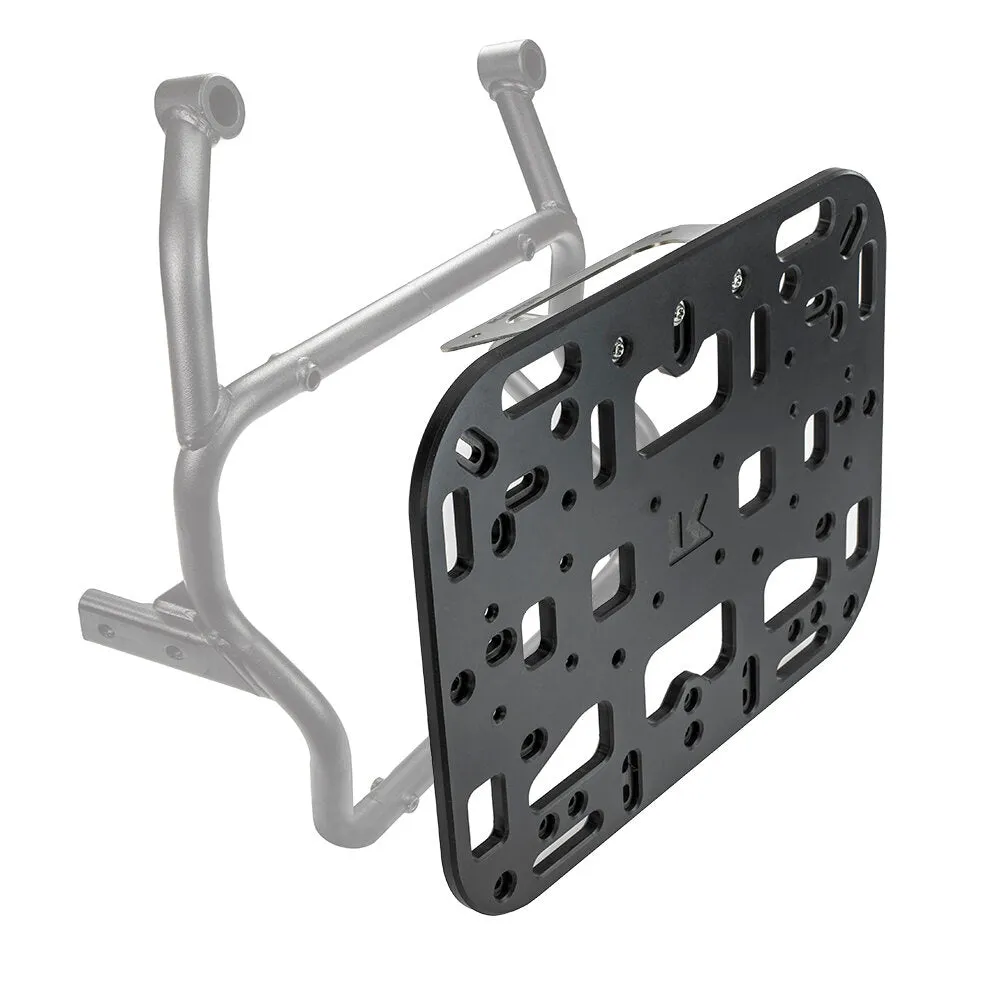

CNC machined from virtually indestructible Nylon 6, OS-PLATFORMS are lighter than alloy and without fatigue issues.  Engineered into the design are optional attachment points, allowing you to mount single or double fuel and water containers or a combination of OS-6 or OS-12 ADVENTURE PACKS and containers. The flexibility of the design enables you to set up the bike to suit your adventure.

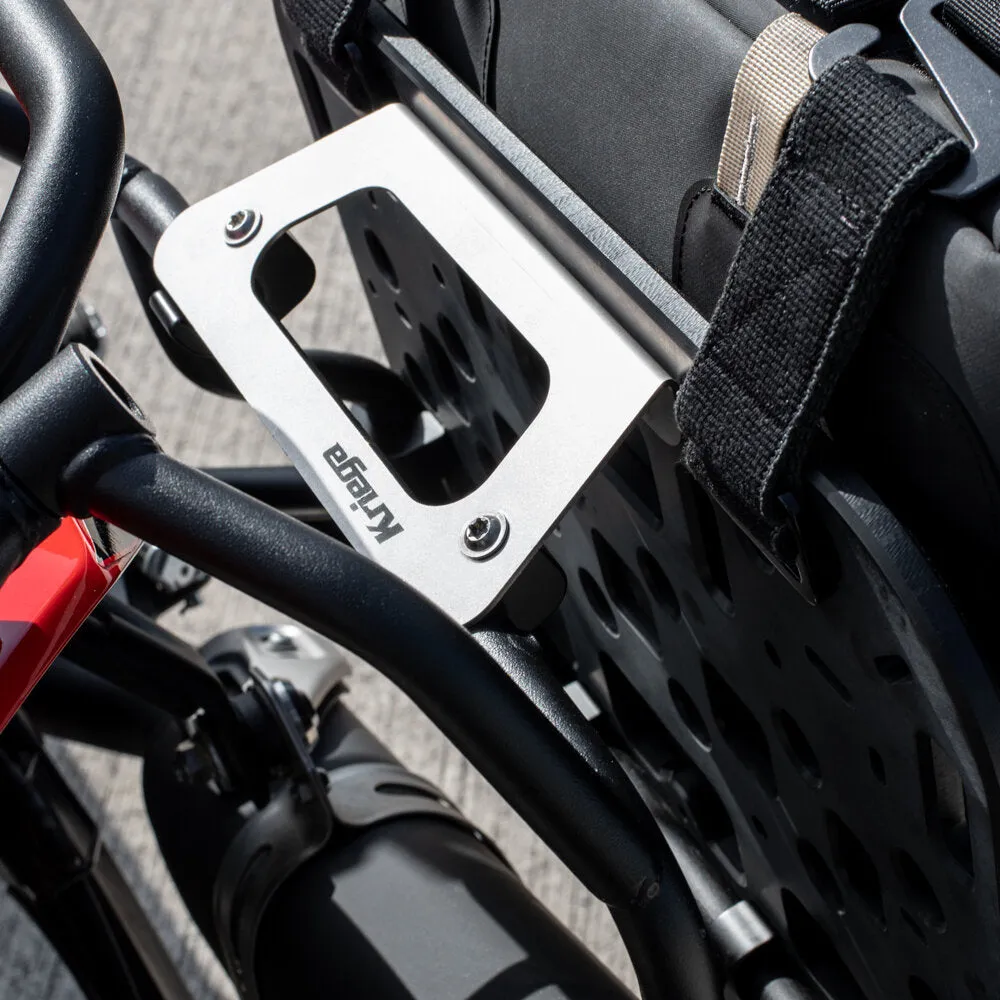

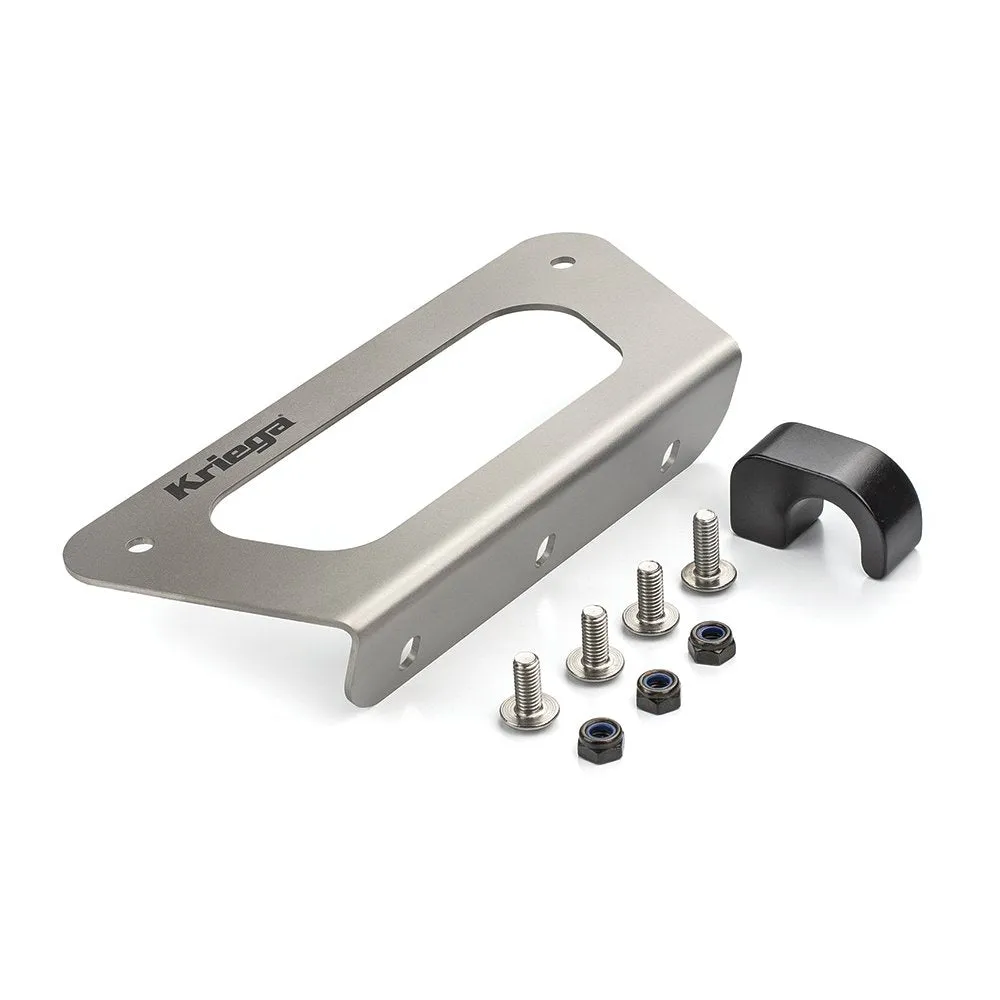

THE ADAPTOR is laser cut stainless steel which fixes to the OS-PLATFORM with 3 bolts and Nyloc nuts. It clamps to the top of the YAMAHA frame using 2 of the aircraft grade aluminium clamps. The remaining 4 clamps fix the OS-PLATFORM directly to the frame, giving a very strong and stable base to add an OS-Pannier, OS-Adventure Packs or fuel or water contains.

The YAMAHA frame profile on the opposite side to the exhaust is flat and therefore a standard , will easily mount to this side.

TECH SPECS

PLATFORM
• 10mm Nylon-6 construction.
• CNC machined both sides.
• Aircraft grade black anodized clamps.

ADAPTOR
• Laser cut stainless steel construction
• Laser etched Kriega logo
• Includes all fittings

PLATFORM DIMENSIONS
390(w) x 300(h) x 10(d)mm
15.3"(w) x 11.8"(h) x 0.3"(d)

TOTAL WEIGHT
1450g  / 51 oz
